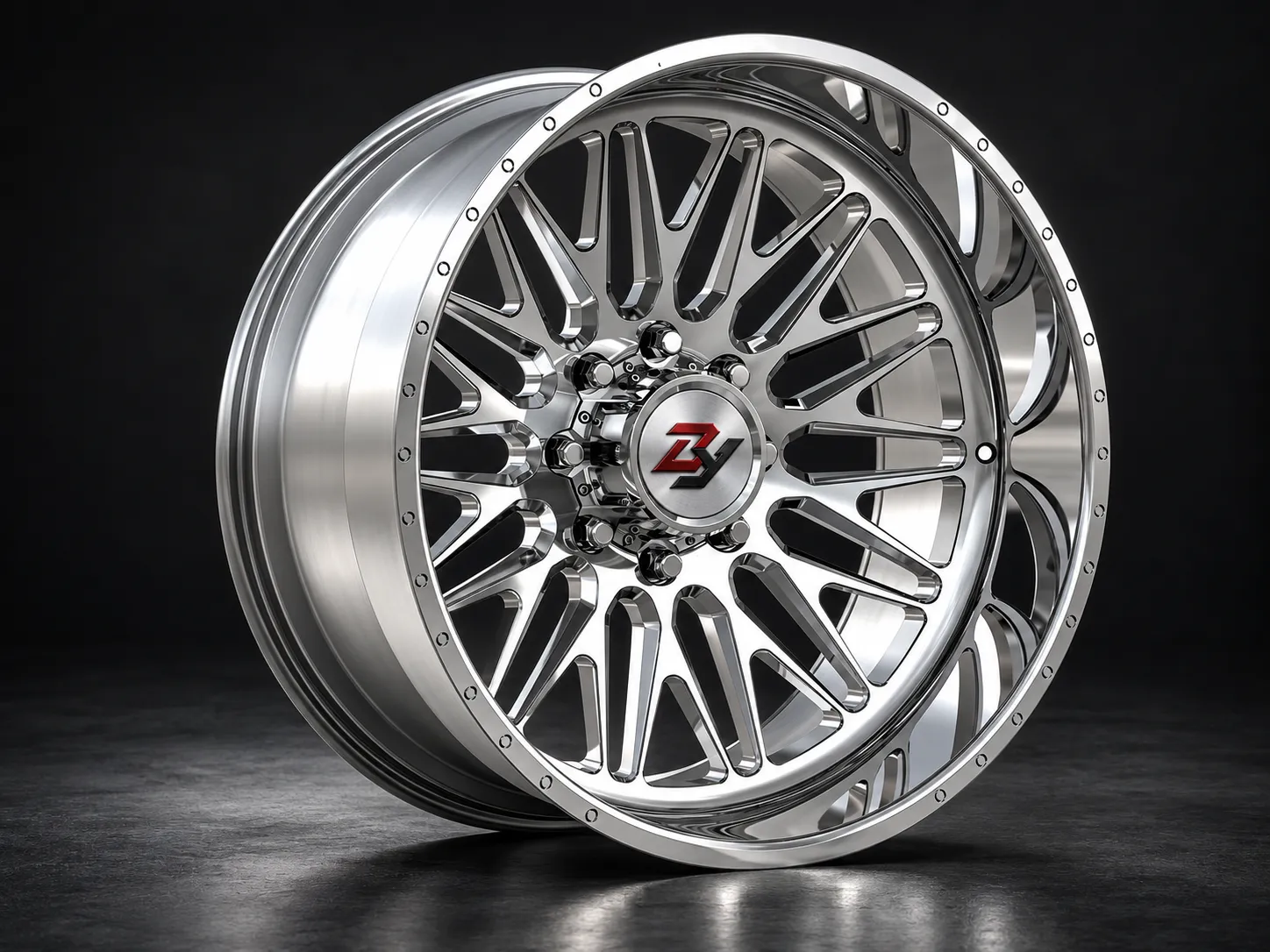

Truck & Luxury SUV Forged Wheels
Engineered around axle ratings, heavy payloads, and dynamic dual-terrain impact loads. Solid 12,000-ton 6061-T6 forgings carved to conquer heavy towing, highway cruising, and remote overland expeditions.
1,600 KG+
3,527 lbs corner capacity verified20" – 30"
Up to 12.0J widebody widthsSAE J2530
JWL-T & VIA Heavy Truck StandardDirect-Drilled
Zero plastic rings, zero flutter1000KG+ Single Wheel Load Engineering Standards
Full-size luxury trucks and armored SUVs weigh over 6,000 lbs empty and generate massive dynamic G-forces over curbs and road heaves. BOYAO engineers each wheel specifically around vehicle Gross Axle Weight Ratings (GAWR), applying 3D FEA topology simulation to reinforce spoke root junctions.
Reinforced Spoke Roots
Spoke thickness and inner fillet radii are enhanced by up to 35% compared to lightweight sport car wheels, eliminating high-stress concentration areas during heavy trailer sway.
Back-Pocketing Weight Relief
Precision CNC pockets remove non-load-bearing aluminum from the back of the spokes. This reduces rotational unsprung mass by 20–30% compared to heavy OEM cast wheels without compromising the 1,600kg rating.
420mm BBK Caliper Pockets
Swallows the massive factory 6-piston and 8-piston Brembo or Akebono brake calipers found on Escalade-V, G63 AMG, and Raptor R with guaranteed 4mm+ dynamic clearance.
Four Defined Real-World Operating Applications
Larger vehicles and heavy payloads require more than a visual fitment decision. We align wheel barrel geometry and spoke profiles to the exact operating environment.
Daily Touring & Highway Refinement
High-Speed Acoustic Balance & Zero Vibration
Luxury full-size SUVs require strict structural roundness and high-speed dynamic balance. BOYAO direct-drilled hub bores (under 0.20mm radial/axial runout) eliminate highway steering flutter on Mercedes-AMG G63, Cadillac Escalade-V, and Range Rover SV models cruising at 130+ km/h.
Towing & Heavy Payload
Gross Axle Weight Rating (GAWR) Mastery
Towing 10,000+ lb commercial trailers, boats, or race haulers introduces immense downward tongue weight and severe lateral sway fatigue. Every BOYAO truck wheel features thickened spoke roots and reinforced rim flanges engineered to exceed maximum axle ratings without stress cracking.
Overland Expedition & Washboards
Continuous Dynamic Impact Resistance
Sustained high-speed washboard tracks and rocky washouts transmit continuous high-G shockwaves into the wheel barrels. 12,000-ton forged 6061-T6 provides dense, unbroken grain flow with superior ductile toughness compared to brittle cast wheels that can shatter under trail impacts.
Lifted & Widebody Modifications
Negative Offset Geometry & Suspension Clearance
Custom 3-inch to 6-inch suspension lift kits running 35-inch to 38-inch tires require deep negative offsets (-12mm to -44mm) to maintain stability. BOYAO custom-engineers backspacing to clear aftermarket tubular control arms and steering knuckles without tire scrubbing.
Vehicle Coverage & Fitment Blueprint Matrix
Direct-machined hub bores matching OEM wheel bearings with zero tolerance slop. Verified big brake caliper clearance templates.
| Vehicle Platform | Years | Bolt Pattern & CB | Available Diameters | Brake Envelope | Rated Load |
|---|---|---|---|---|---|
| Cadillac Escalade / Escalade-V | 2021 – 2026 | 6x139.7 (78.1mm CB) | 22x9.5J / 24x10J / 26x10J | Factory Brembo 6-Piston 420mm Rotor Clearance | 1,200 KG per wheel |
| Mercedes-AMG G-Class G63 / G550 | 2019 – 2026 (W463A) | 5x130 (84.1mm CB) | 22x10J / 23x10.5J / 24x10J | AMG 6-Piston 400mm High-Performance Calipers | 1,350 KG per wheel |
| Range Rover SV / Defender 110/130 | 2020 – 2026 | 5x120 (72.6mm CB) | 22x9.5J / 23x10J / 24x10J | Brembo 6-Piston 400mm Brake Calipers | 1,150 KG per wheel |
| Ford F-150 / Raptor / Raptor R | 2017 – 2026 | 6x135 (87.1mm CB) | 20x9.5J / 20x10J / 22x10J | OEM Performance 350mm/380mm Package | 1,400 KG per wheel |
| RAM 1500 / TRX (6.2L Supercharged) | 2021 – 2026 | 6x139.7 (77.8mm CB) | 20x9.5J / 20x10J / 22x10J | TRX 381mm 2-Piston Floating Front Calipers | 1,450 KG per wheel |
| Toyota Land Cruiser 300 / Tundra | 2022 – 2026 | 6x139.7 (95.1mm CB) | 20x9.5J / 22x9.5J / 22x10J | Factory 4-Piston 354mm Front Brakes | 1,500 KG per wheel |
Verified SAE J2530 & JWL-T Certification Evidence
Every batch lot tested before export releaseSAE J2530 / JWL-T Protocol
100,000 Cycles @ 1.50x Moment
Zero crack initiation, zero torque drop
SAE J2530 Heavy Truck Load
500,000 Cycles @ 2.20x Radial Load
Zero structural deformation, zero rim failure
ISO 7141 / SAE Heavy Drop Protocol
Heavy Weight Striker Drop Test
Zero instant pressure loss, zero rim fracture
Zeiss 3D Coordinate Measuring
100% Full Inspection Handoff
Runout < 0.20mm radial & axial runout verified
Start Your Heavy-Duty Forged Brief
Provide your truck model, suspension lift status, towing requirements, and preferred finish. We return verified axle load FEA drawings within 24 hours.
